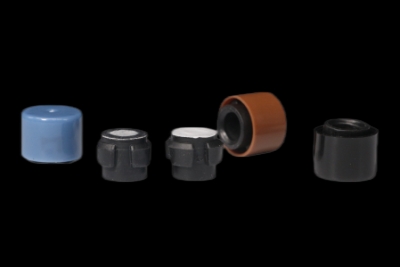

Automotive Lighting Vents for Reliable Moisture Protection

SST Lighting Vent Caps protect lamp assemblies with matched ePTFE membranes. They equalize pressure, help reduce condensation, and block water, dust, and automotive fluids in headlamps, rear lamps, and fog lamps.

GET ENQUIRY Contact Us

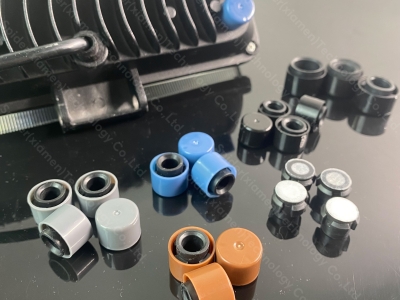

Spider Lighting Vent Cap Waterproof Breathable Condensation Reduction

CONTACT TO SST

Welcome to contact SST to get more information about products and services. Simply send us a message through our contact form and the responsible contact person will get in touch with you as soon as possible.

Description

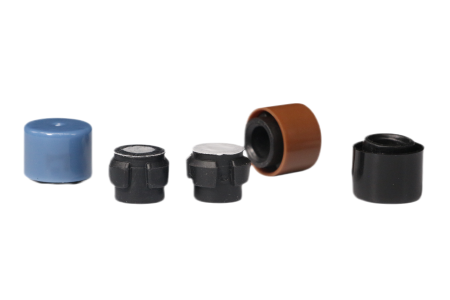

SST Lighting Vent Cap

Vent caps for automotive exterior lighting. Different airflow and moisture-vapor rates can be matched to the lamp cavity so the lens stays clearer and seals take less pressure load.

Key Features

Reduce condensation: Moisture vapor can leave the housing while the lamp is on or parked
Equalize pressure: Limits seal stress from temperature and altitude changes
Ingress protection: Blocks water, dust, and dirt; series options include IPX7
Easy installation: Cap design with assembly tolerance for lighting housings

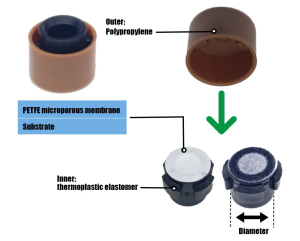

SST-Porous ®Component BD T series waterproof and breathable cap product structure diagram

SST-Porous ®Component BD T series waterproof and breathable cap product structure diagram

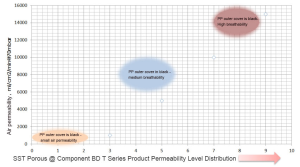

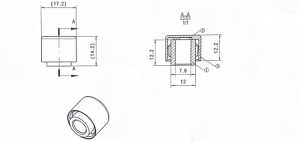

SST-Porous®Component BDT series waterproof and breathable cap products Typical sizes

Typical Applications

Headlamps
Rear lamps
Fog lamps and accessory lamps
Turn indicators and other exterior lighting

Featured Resources

Data Sheet & Installation Guide : Spider® Protective Vents - Lighting Vent Cap Series

Download →

SST is a fluoropolymer technology R&D and innovation company based on materials technology, focusing on the R&D and application research of PTFE porous materials.

A Durable and Easy-To-Apply Vent Solution

STT® Lighting Vent Cap Series provides:

Great breathability

It can quickly dissipate the fog inside the car lights and prevent the lights from sagging.

High IP protection level

IP54/IP67/IP68/IP69K can be customized

Easy to install

Easy to integrate and install

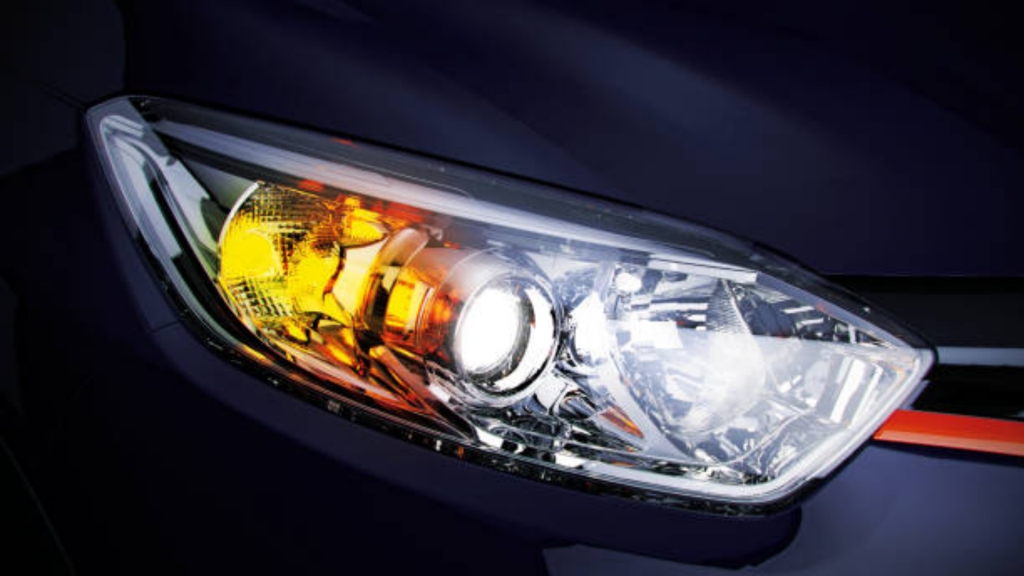

Automotive Lighting

Main Applications:

Vehicle Lighting Systems (Headlamps, Taillamps, Fog Lamps, Turn Signal Lights, Grille Lights, License Plate Lights, Interior Lights, etc.)

Challenges & Solutions Automotive lighting systems face drastic temperature changes, pressure differentials, moisture ingress, and contamination. These issues commonly cause lamp fogging, condensation, lens clouding, seal failure, and reduced lighting performance, compromising driving safety and user experience.

Spider / SST Lighting Vent Cap utilizes high-performance ePTFE microporous membranes matched to different gradients of air permeability and moisture permeability. It features a compact design, easy installation, and stable protection levels, making it especially suitable for headlight and other automotive lighting applications. SST’s strong engineering team provides consulting, membrane selection, structural design, and other services during the customer’s early design stage.

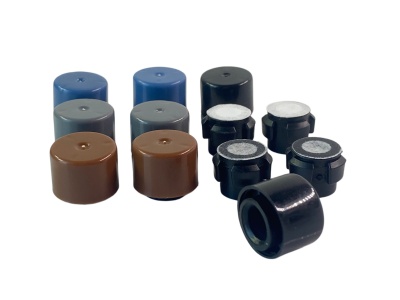

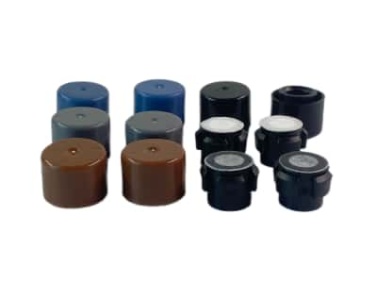

Black

Available in protection levels IP67/IP68/IP69

Customizable shapes, sizes, and thicknesses

Blue

Available in protection levels IP67/IP68/IP69

Customizable shapes, sizes, and thicknesses

Grev

Available in protection levels IP67/IP68/IP69

Customizable shapes, sizes, and thicknesses

Brown

Available in protection levels IP67/IP68/IP69

Customizable shapes, sizes, and thicknesses

SST Products have been fully tested by independent laboratories and certified to meet a range of IEC, UL and DIN testing standards, including durability/resistance to environmental challenges including:

IP Ratings
Salt Fog Testing

Temperature Testing
Humidity Testing
Flammability Testing

Technical Parameters

Product Model	Typical air permeability (ml/min/cm2) @ 7kPa	Protection level	Water pressure resistance KPa, 60S	Material	color	Temperature range (°C)
BD T78-01-45-Black	70±30@1kpa	IPX7		TPV+PP	black	-40~105
BD T78-01-500-Grey	1600±300@1kPa	IPX1~X4		TPV+PP	Black + Gray	-40~105
BD T78-01-45-Blue-O	70±30@1kpa	IPX7		TPV+PP	Black + Blue	-40~105
