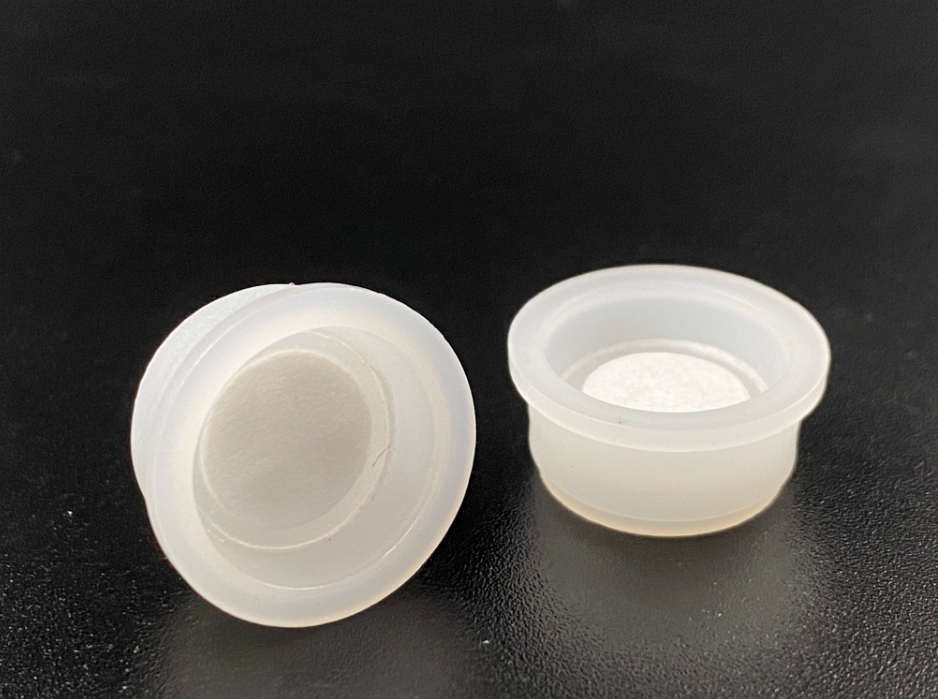

SST-Porous® D15 Breather vent plug, made by modified oleophobic ePTFE membrane and HPTE parts, welded together by ultrasonic or thermal melt. The completed component vent could equalize pressure imbalance to prevent container/bottle from deformation causing dangerous spills or costly returns..
SST-Porous® Breather Plug in vents, made of modified oleophobic ePTFE membrane and welded to HPTE parts by ultrasonic or thermal melt, having the characteristic of simple design, easy assemly and long service life.

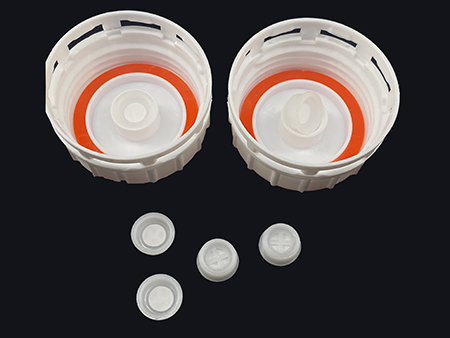

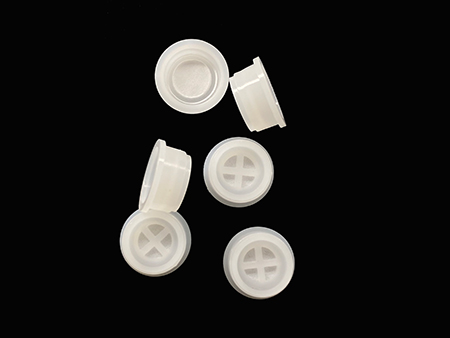

SST-Porous®Breather Plug in vents, apply press fit design, easy to combine with custom products.
Standard :
D10, D15, D17, D38
SST provide customized sizes of plug and special-shaped plug to meet your specific requirement.
a. Bottle/container/Buket be inverted or turned over for a long time, resulting in leakage after airtight.
b. There is no hole on the outer cover, and the gas breaks through the breather membrane causing leakage
c. The liquid’s surface tension is too low, causing leakage.
Airflow | 1.5 L/min@1.2Kpa |
Water resistance | >200kPA |
Membrane material | e-PTFE |
Characteristic | Waterproof, dustproof, Air permeable, oilproof |
Membrance color | While |
Temperature | -40℃~125℃ |
Vent housing material | HDPE |
Avoid contact with sharp objects and do not touch or squeeze the membrane.
Wear gloves or finger muffs during operation
Mainly used in chemical, agriculture, food and other package field.
