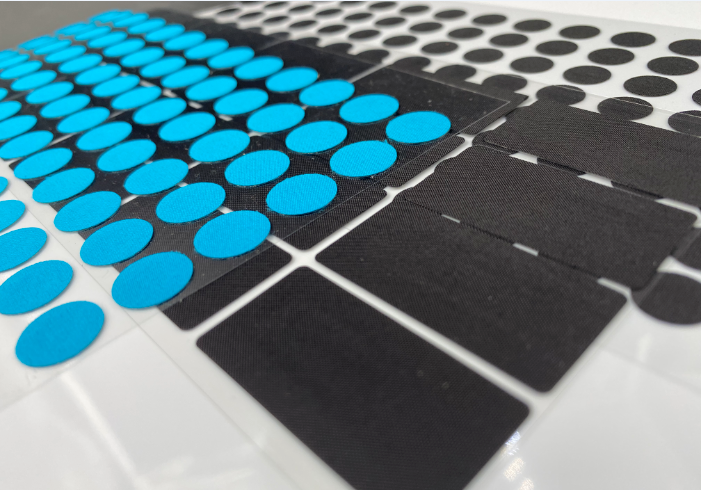

SST-Porous ® Black adhesive vents BD 04 series, made by SST porous ® ePTFE membrane which compounded with polyester or nylon fabric, and then combined with acrylic adhesive. The BD 04 series adhesive vents are formed with different color choices to reduce the abrupt feeling of breathable membrane and plastic parts.
SST-Porous®adhesive &BD 04 series breathable vents, reseach and developed by SST independently. made of SST-Porous® PTFE membrane and base material of PET or Nylon fabric，formed through a special composite process. SST-Porous® BD 04 series, vents still maintains a high permeability and average pore diameter, but not easily stratified. Color blue and Black for your choice.
SST-Porous® BD 04 series, The breathable membrane and acrylic adhesive are precisely processed and combined to form a adhesive breathable vent product.
SST-Porous® adhesive &BD04 series, permeable membrane vents is waterproof, dustproof but breathable, equalize pressure (pressure compensation), be fixed to the surface of the electronic component housing either automatically or manually.
SST-Porous® PTFE breather membrane, through precision die cutting process, die cut the adhesive membrane to different sizes according to the actual working conditions or customer specifications, made into SST bulk production for delivery.
※ Extend the service life of electronic equipments, quickly pressure equalization to reduce the stress on the sealing ring of the equipment housing
※ Reliable protection，SST-Porous® PTFE Hydrophobic and Oleophbic breather vents could prevent the entry of water, salt, corrosive liquids and particulate etc
※ Improve durablity, improve the durability of sealed enclousures by following the industry standards
※ Flexible design, installation and maintenance more convenient
※ Wide range of vents with high airflow, high temperature stablity and well-matched strong adhesive to housing surface
※ Outstanding technic expertise, rich technical knowledge accumulated by SST engineering department provides the most professional technical service and support for global terminal applications
|Item||Backing Material||Spec||Typical airflow
|Membrane type||IP rate||Temperature||Color
BD 04100100-Lake Blue
|2||BD 04100100-Black||Polyester fabric||OD: 12.7
※ Specification are measured by the backing material of lake blue nylon fabric and black polyester fabric, if other sizes or backing material required, please contact our engineer
※ Available color: Lake blue, Black
※ If you have quiry on dimesion, please contact us email@example.com;
※ The above data are all sample measurements, so the actual performance can not be guaranteed, and the technical data may change;
※ Ingress Protection rate per IEC 529–598
SST-Porous® adhesive & BD04 series breather vents, it is a high-tech products that need professional final-processing.
Please contact us when planning to enter your manufacturing process, not all final-processings are compatible with this product. We will be pleased to offer our expertise in this field to you.
Recommended Surface roughness：Rz＜10µm（max：Rz＜16μm）。
Mounting surfaces should be dry and clean and free of oils, particles, release agent and other contaminants. the loose oxide layer on the surface will reduce the durability.
Grease free solvent, like heptane, isp[ropanol or alcohol.
In case of incompatibility, select another cleaning agent for the application surface.
Press fit——suitable for semi-automatic installation
To achieve excellent press fit design and to obtain appropriate pressure，please follow the general recommendations as below:
Press fit——suitable for manual installation
Application: Security equipment、Facial recognition systems、Building walkie talkies ,etc
Application: Electric toothbrush, tooth punch, razor, sweeping robot, electric tools, robot mower, etc
Application: Car headlights、Security equipment、Facial recognition systems、Building walkie talkies etc
Application: Headlamp, Tail lamp,Turn signal lamp, Reflector, etc.
Application: Headlamp, Tail lamp,Turn signal lamp, Reflector,Battery,Security device,Distribution box, Electric machinery etc
Application: Electric toothbrush, Razor, Balance car, Robot mower, Electrical box, etc
Application: Shared bicycle batteries、Distribution boxes、 Electric machinery、 Security equipment, etc
